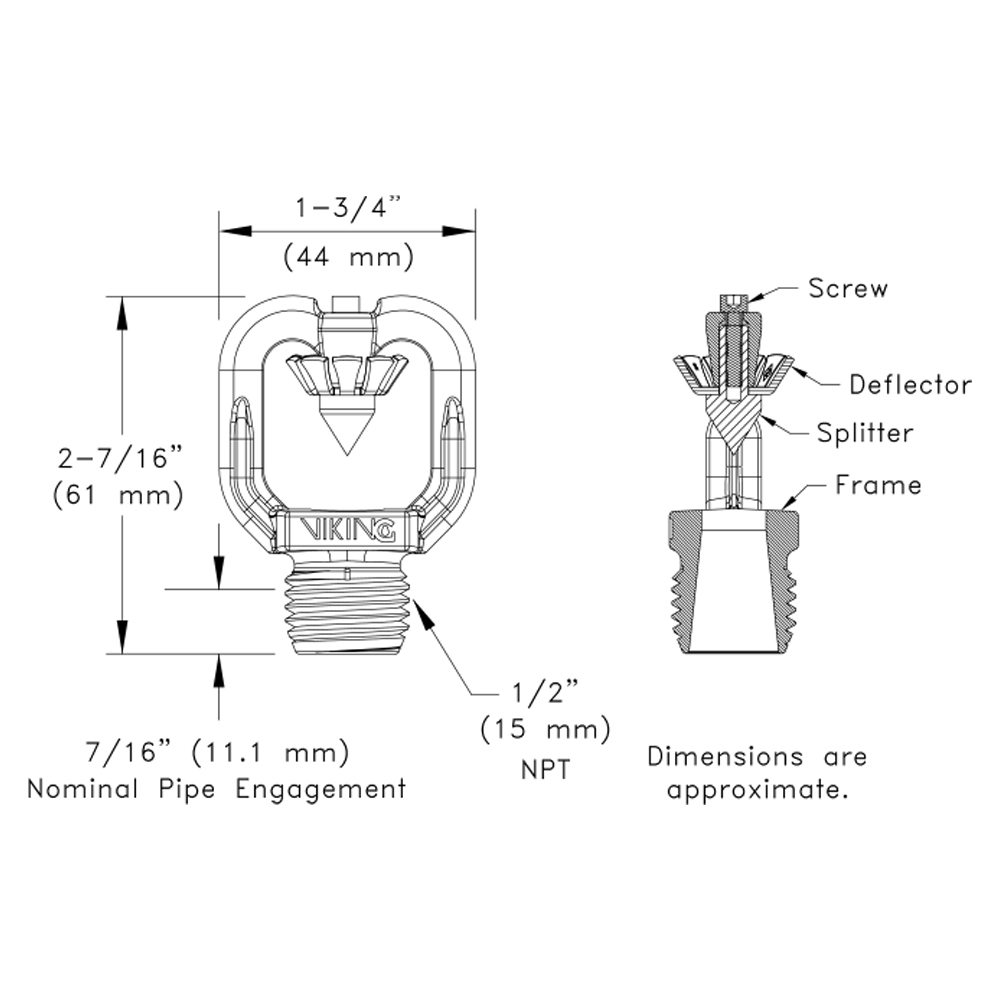

The E-Type 3D nozzle is an open nozzle designed for directional spray applications in fixed fire protection systems. The nozzle is an open design (non-automatic) with an external deflector that produces a steady, uniform cone spray of low to medium velocity droplets. The E-Type nozzle is available in a variety of orifice sizes and spray angles to suit the design application and is available with ½” NPT (DN15) external pipe threads. The nozzle base material is brass and the entire assembly can be electroless nickel plated for applications requiring corrosion resistance.
| Model | VK810 |
| Material | Brass |
| Orientation | Sidewall |
| K-factor, gpm/psi ½ (lpm/bar ½ ) | 14.0 (202) |
| Maximum Working Pressure | 175 psi (12 bar) |
| Temperature Rating °F (°C)1 | 155°F (68°C)-200°F (93°C) |
| Thread Size | 3/4″ NPT (20 mm) |
