描述
Model | VK496 |
Material | Brass |
Orientation: | Pendent |
Maximum Working Pressure | 175 psi (12 bar) |
Temperature Rating °F (°C)1 | 155°F (68°C)-175°F (79°C) |
Thread Size | 1/2″ NPT (15 mm BSP) |

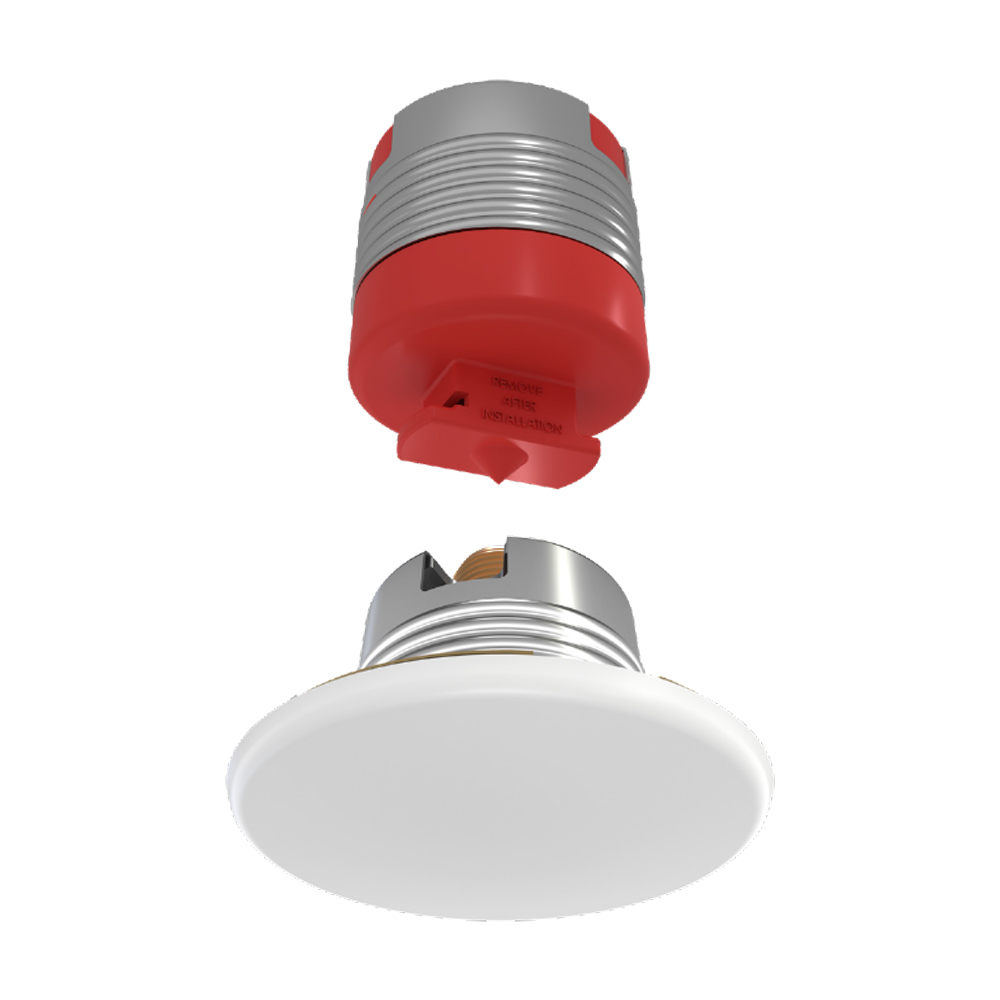

The VK496 Residential Concealed Pendent Sprinkler is a small thermal glass bulb residential sprinkler designed for installation in concealed pipe systems where a smooth ceiling appearance is desired. Its orifice design allows the sprinkler to efficiently utilize existing water supplies to supply hydraulically designed fire protection systems. The glass bulb operator and special deflector features meet the requirements of residential sprinkler standards.
Model | VK496 |
Material | Brass |
Orientation: | Pendent |
Maximum Working Pressure | 175 psi (12 bar) |
Temperature Rating °F (°C)1 | 155°F (68°C)-175°F (79°C) |
Thread Size | 1/2″ NPT (15 mm BSP) |
