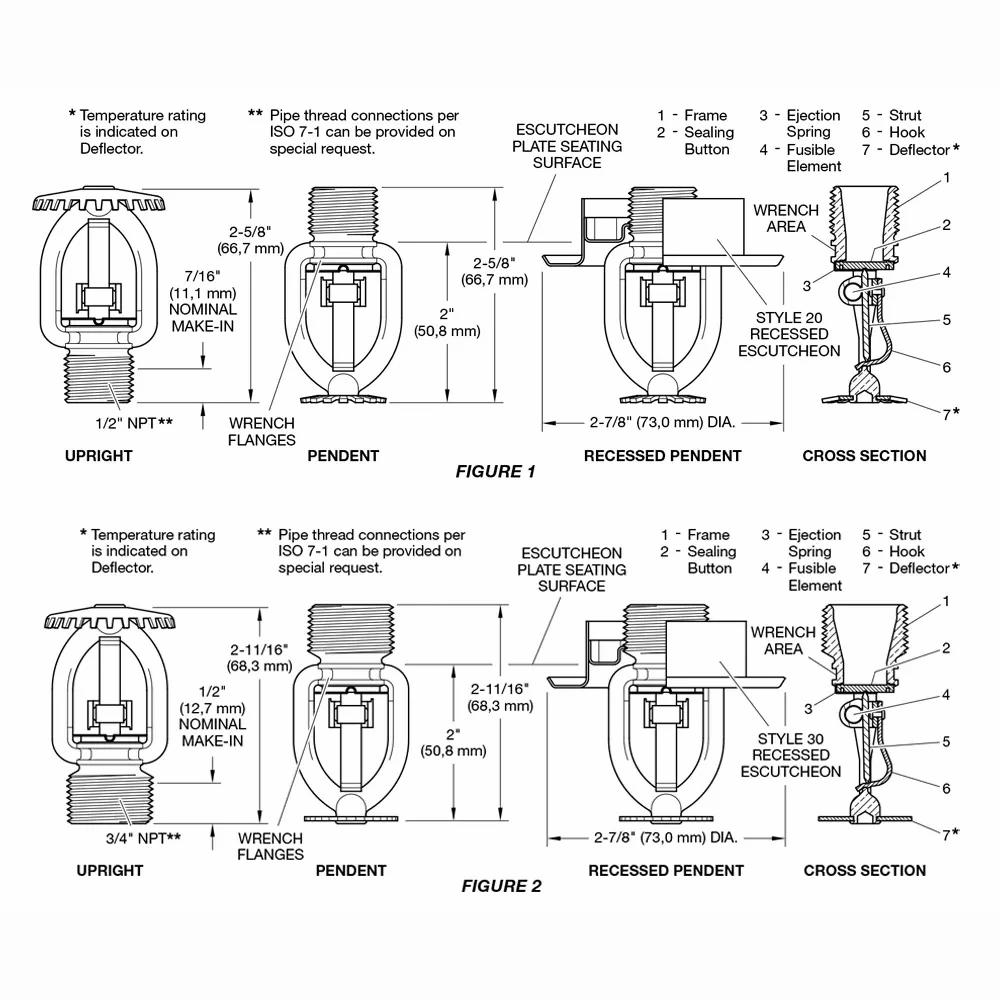

The TYCO Series TY-L 5.6 and 8.0 K-factor upright, pendent and recessed pendent sprinklers described herein are standard response, standard coverage, weld-in spray sprinklers. They are designed for light, average and high hazard commercial locations such as banks, hotels, shopping centers, factories, refineries and chemical plants.
| Model | TY3111 5.6K, 1/2 in. NPT
TY4111 8.0K, 3/4 in. NPT TY4811 8.0K, 1/2 in. NPT |
| Material | Brass,Bronze |
| Maximum Working Pressure | 175 psi (12.1 bar) |
| Discharge Coefficient | K = 5.6 GPM/psi½ (80,6 LPM/bar½)
K=8.0 gpm/psi½ (115,2 Lpm/bar½) |
| Temperature Rating °F (°C)1 | 165°F (74°C)
212°F (100°C) 280°F (138°C) |
| Thread Size | 1/2 in. NPT
3/4 in. NPT |
| Sprinkler Orientation | Upright/Pendent |
