Parameters and Functions
| Parameters and Functions | |

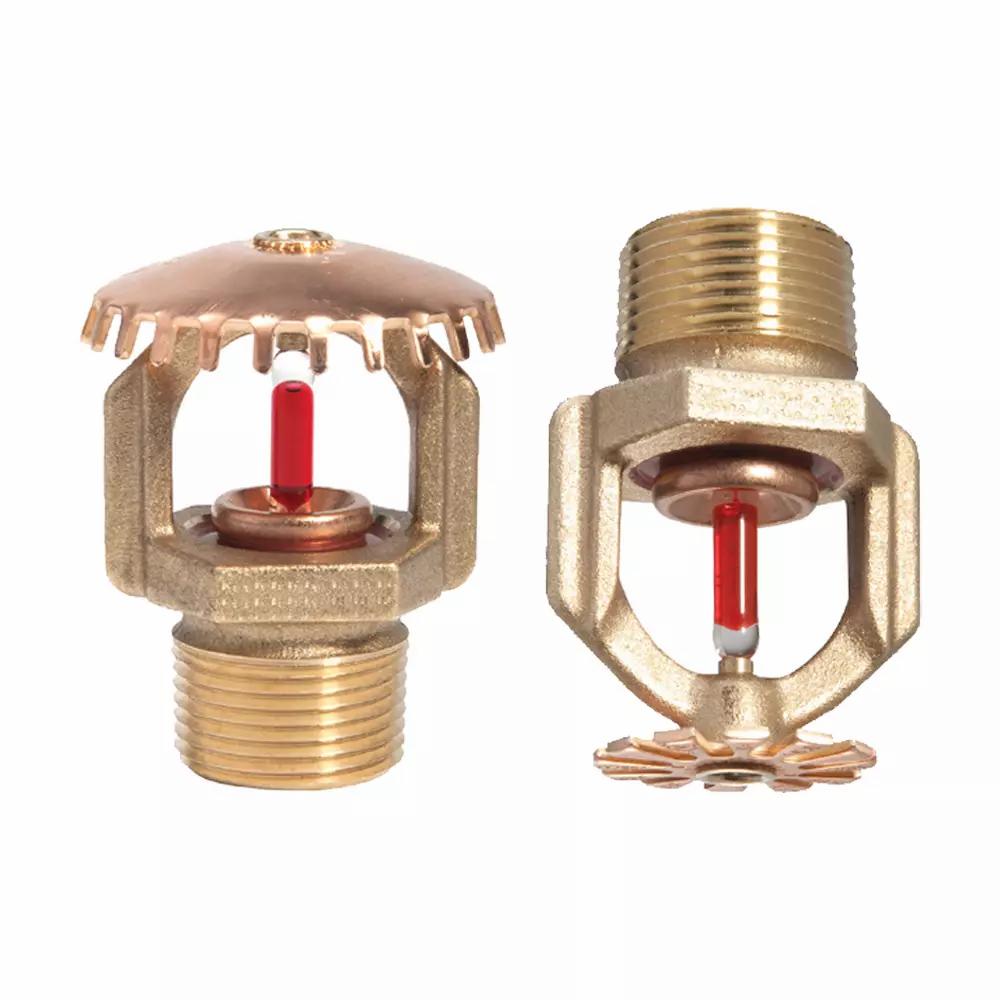

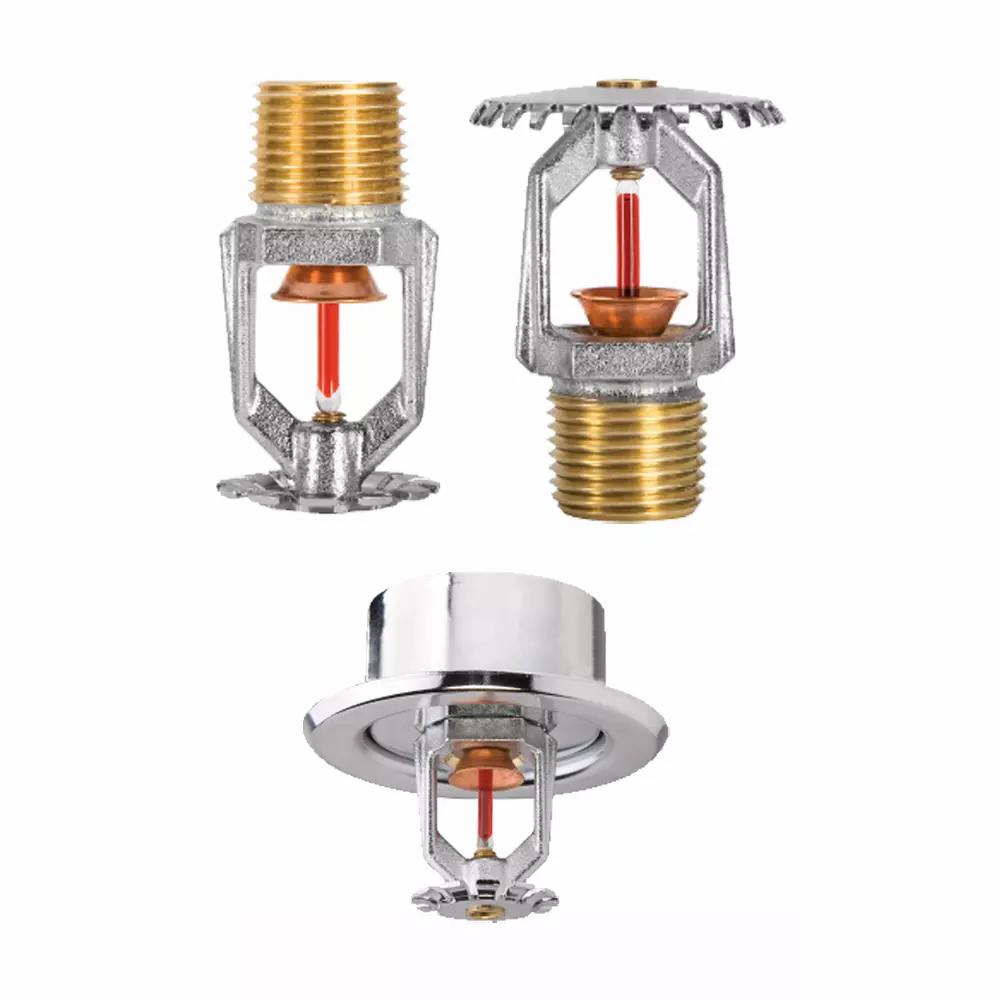

| Model | Fire sprinkler |
| Material | Brass |
| Type | Upright,Pendent, Sidewall |
| Norminal diameter(mm) | 1/2″ or 3/4″ |
| Connecting thread | NPT, BSP |
| Glass bulb color | Red |
| Temperature rating | 135°F/(57°C) 155°F/(68°C) 175°F/(79°C) 200°F/(93°C) 286°F/(141°C) |
| Flow Rate | K=80 |
| Glass Bulb | 5 Compression Screw |
| Finishes | Chrome plated, natural brass, polyester coated |
| Testing | 100% detection under 3.2Mpa seal test pressure |
| Response | Quick response/Standard response |
