Leyon FM UL Series ELO-231 Upright and Pendent Sprinklers Standard Response, Standard Coverage

The Tyco ELO-231 11.2K Standard Response Spray Tips (Upright/Pendant) produce a hemispherical water pattern and are tested/certified for high pile warehouse protection as a replacement for 5.6K or 8.0K tips.

Category Fire Sprinkler

Description

Description

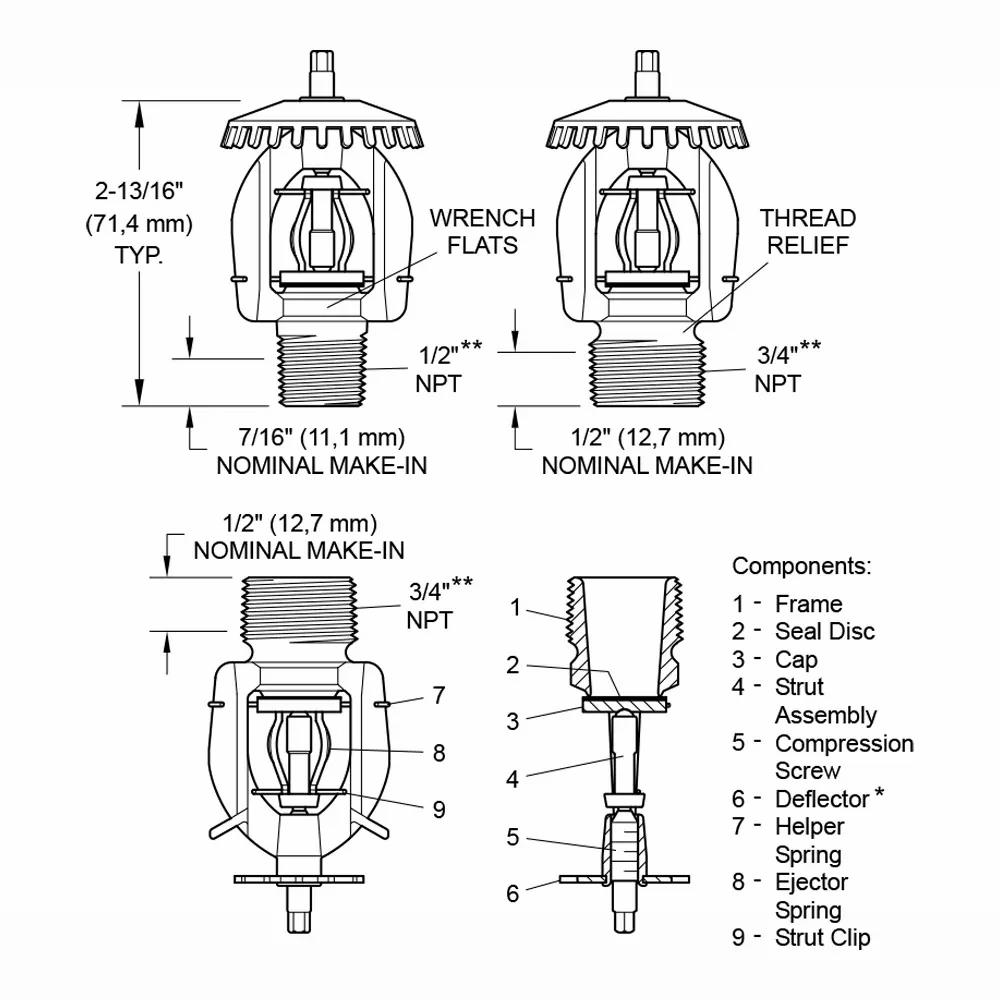

Model	TY5111 – Upright – 3/4 in. NPT TY5211 – Pendent – 3/4 in. NPT TY5811 – Upright – 1/2 in. NPT
Material	Brass,Bronze
K-factor, gpm/psi½ (lpm/bar½)	11.2 gpm/psi½ (161,4 lpm/bar½)
Temperature Rating °F (°C)¹	165°F (74°C)¹ 212°F (100°C) 286°F (141°C)
Thread Size	3/4 in. NPT or ISO 7-R 3/4 1/2 in. NPT
Sprinkler Orientation	Upright/Pendent
Maximum Working Pressure, psi (bar)	175 psi (12,1 bar)
