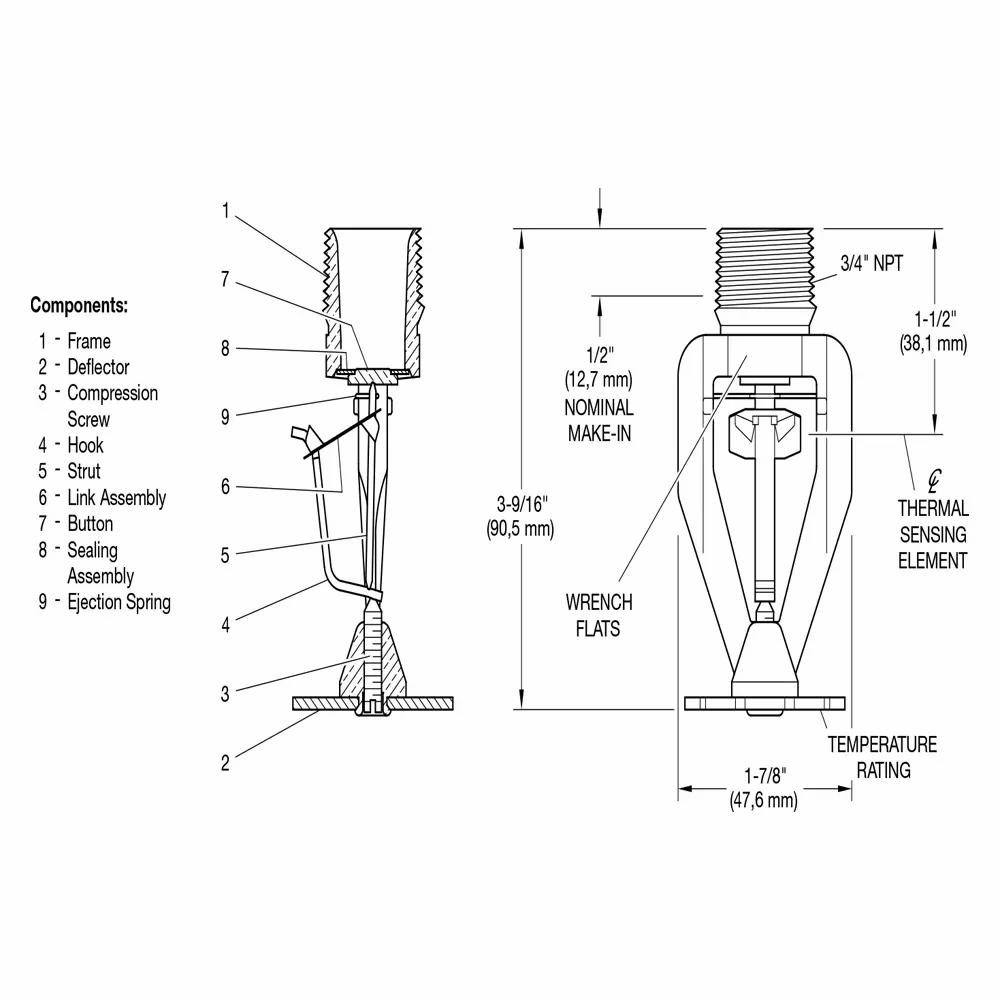

This product is the Model ESFR-1 Pendent Sprinkler, an Early Suppression, Fast Response (ESFR) sprinkler with a 14.0 K-factor.It is primarily designed for fire protection in high-piled storage facilities. A significant advantage of these sprinklers is their ability to eliminate the need for in-rack sprinklers in such environments.
| Model | TY6226 |
| Material | Brass |
| Type | Upright,Pendent,Sidewall |
| K-factor, gpm/psi% (Lpm/bar%) | 14.0 gpm/psi1/2 (201,6 Lpm/bar1/2) |
| Temperature Rating °F (°C) | 165˚F (74˚C) 212˚F (100˚C) |
| Thread Size | 3/4 in. NPT |
| Sprinkler Orientation | Pendent |
| Maximum Working Pressure, psi (bar) | 175 psi (12,1 bar) |
