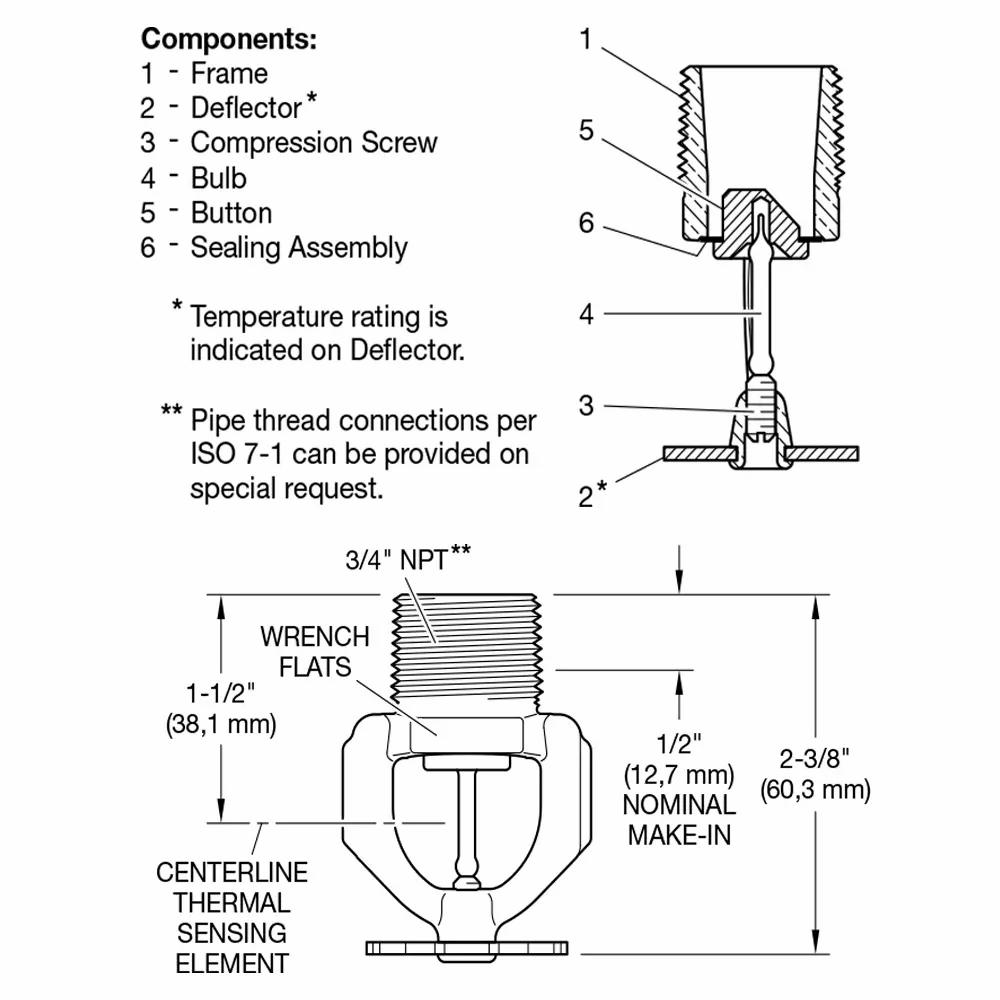

This product is an Early Suppression, Fast Response (ESFR) sprinkler system, specifically the Model ESFR-14 Sprinkler.It is primarily designed for fire protection in high-piled storage facilities. Its key advantage is its ability to eliminate the need for in-rack sprinklers, simplifying the fire suppression system and potentially reducing installation and maintenance costs in such environments.
| Model | TY6236 |
| Material | Brass |
| Type | Pendent |
| K-factor, gpm/psi% (Lpm/bar%) | 14.0 gpm/psi1/2 (201,6 Lpm/bar1/2) |
| Temperature Rating °F (°C) | 155°F(68°C)200°F(93°C) |
| Thread Size | 3/4 in. NPT or ISO 7-1 |
| Sprinkler Orientation | Pendent |
| Maximum Working Pressure, psi (bar) | 175 psi (12 bar) |
