Model | VK630 |
Material | Brass |
Orientation | Sidewall |
K-factor, gpm/psi ½ (lpm/bar ½ ) | 14.0 (202) |
Maximum Working Pressure | 175 psi (12 bar) |
Temperature Rating °F (°C)1 | 155°F (68°C)-200°F (93°C) |
Thread Size | 3/4″ NPT (20 mm) |

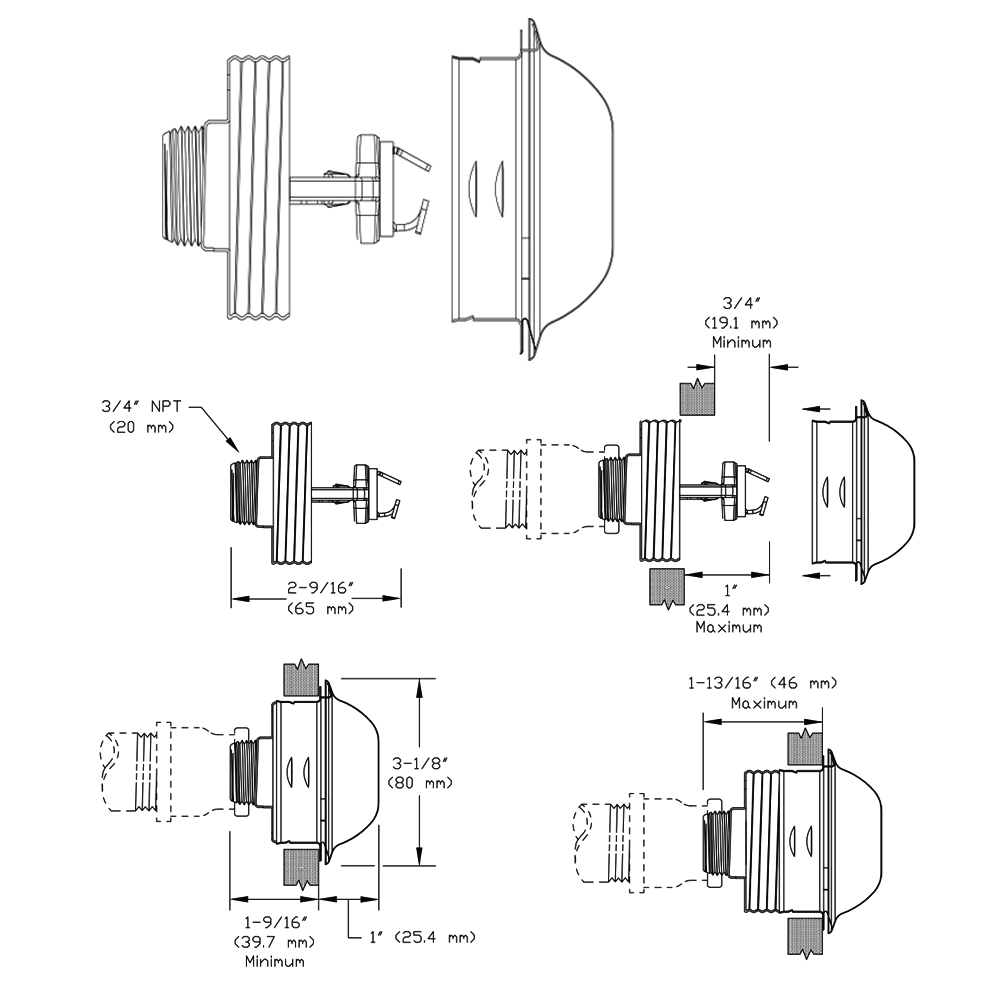

The Rapid Response Extended Coverage Concealed Horizontal Sidewall Sprinkler VK630 is a thermal spray style sprinkler with pre-assembled threaded fittings for installation with dome caps. The glass bulb operator and special deflector features meet the requirements of the Rapid Response Extended Coverage standard. The special chemical nickel plated PTFE coating has been studied for installation in corrosive environments and is listed as a corrosion resistant product.
Model | VK630 |
Material | Brass |
Orientation | Sidewall |
K-factor, gpm/psi ½ (lpm/bar ½ ) | 14.0 (202) |
Maximum Working Pressure | 175 psi (12 bar) |
Temperature Rating °F (°C)1 | 155°F (68°C)-200°F (93°C) |
Thread Size | 3/4″ NPT (20 mm) |
