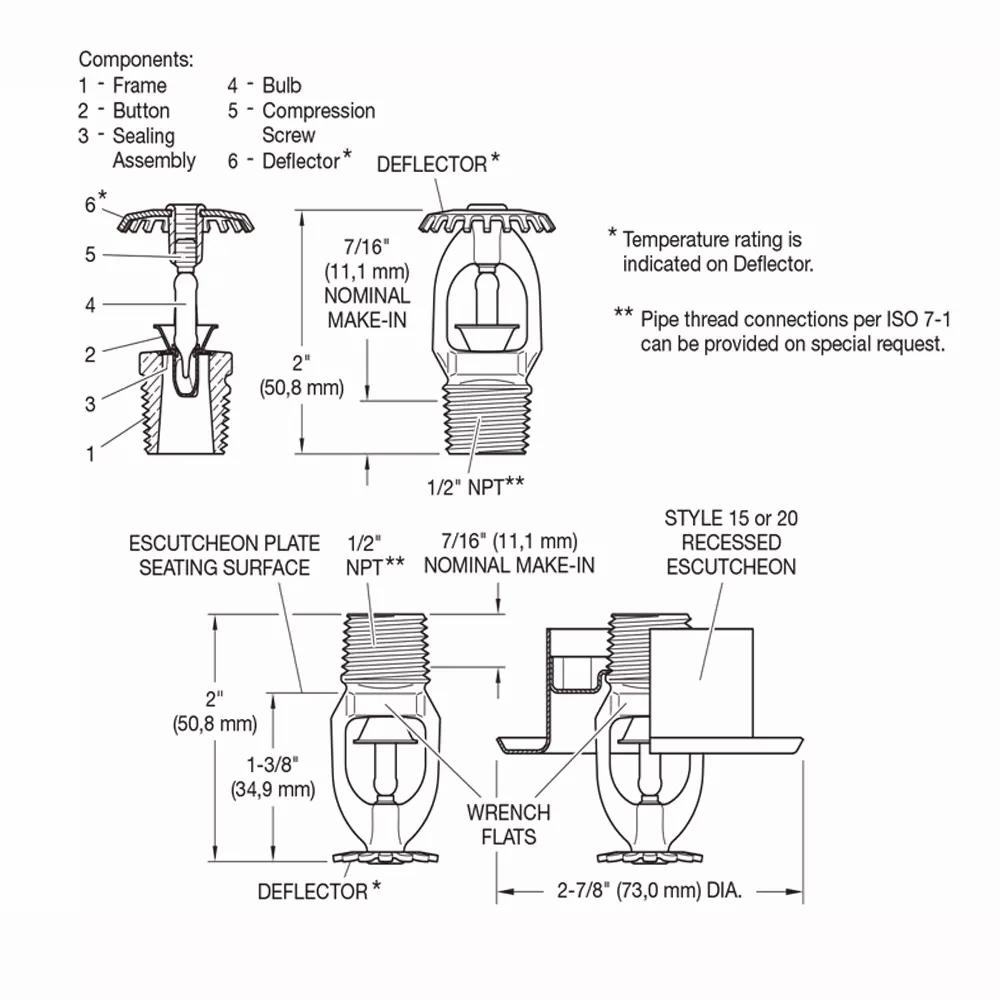

The Tyco TY-B series (5.6K) offers standard response, decorative 5mm glass bulb upright (TY315) and pendent (TY325) spray sprinklers for light, ordinary, or extra hazard commercial/industrial occupancies like banks, hotels, malls, factories, and refineries, with a recessed pendent option available for finished ceilings.
| Model | TY315 Upright 5.6K, 1/2 in. NPT TY325 Pendent 5.6K, 1/2 in. NPT |
| Material | Brass,Bronze |
| Maximum Working Pressure | 175 psi (12.1 bar) 250 psi (17.2 bar)* |
| Discharge Coefficient | K = 5.6 GPM/psi½ (80,6 LPM/bar½) |
| Temperature Rating °F (°C)1 | 135°F (57°C)1 155°F (68°C) 175°F (79°C) |
| Thread Size | 1/2 in. NPT 3/4 in. NPT |
| Sprinkler Orientation | Upright/Pendent |
