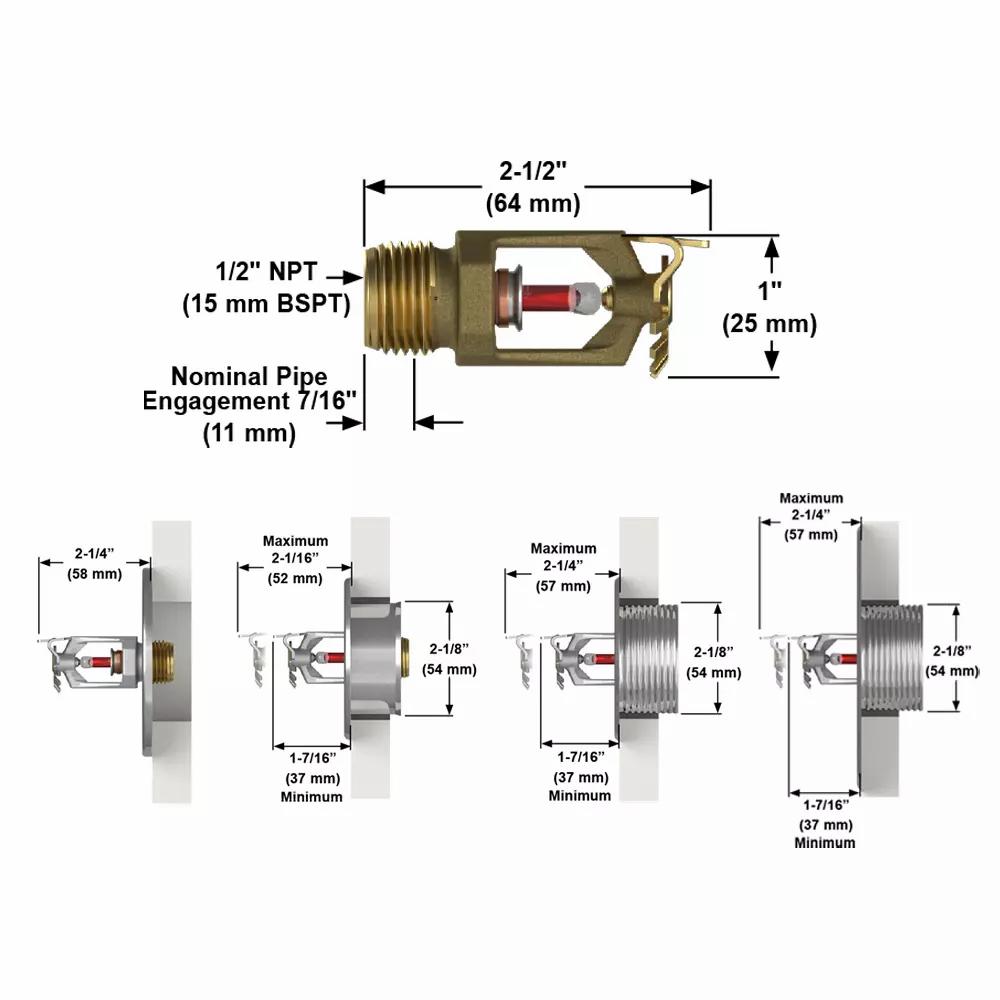

The Standard Response Horizontal Sidewall Sprinkler VK104 is a small thermal glass bulb sprinkler available in a variety of finishes and temperature ratings to suit design requirements. Special polyester coatings and electroless nickel PTFE (ENT) coatings are available for decorative applications where color is desired. In addition, ENT coatings and polyester coatings have been tested for installation in corrosive environments and are registered/certified as required in the certification chart.
| Model | VK104 |
| Material | Brass |
| Orientation: | Sidewall |
| Maximum Working Pressure | 175 psi (12 bar) |
| Temperature Rating °F (°C)1 | 155°F (68°C)-175°F (79°C) |
| Thread Size | 1/2″ NPT (15 mm BSP) |
