Leyon FM UL Model ELOC 11.2 K factor Extra Large Orifice Concealed Pendent Sprinklers Quick Standard Response Extended Coverage

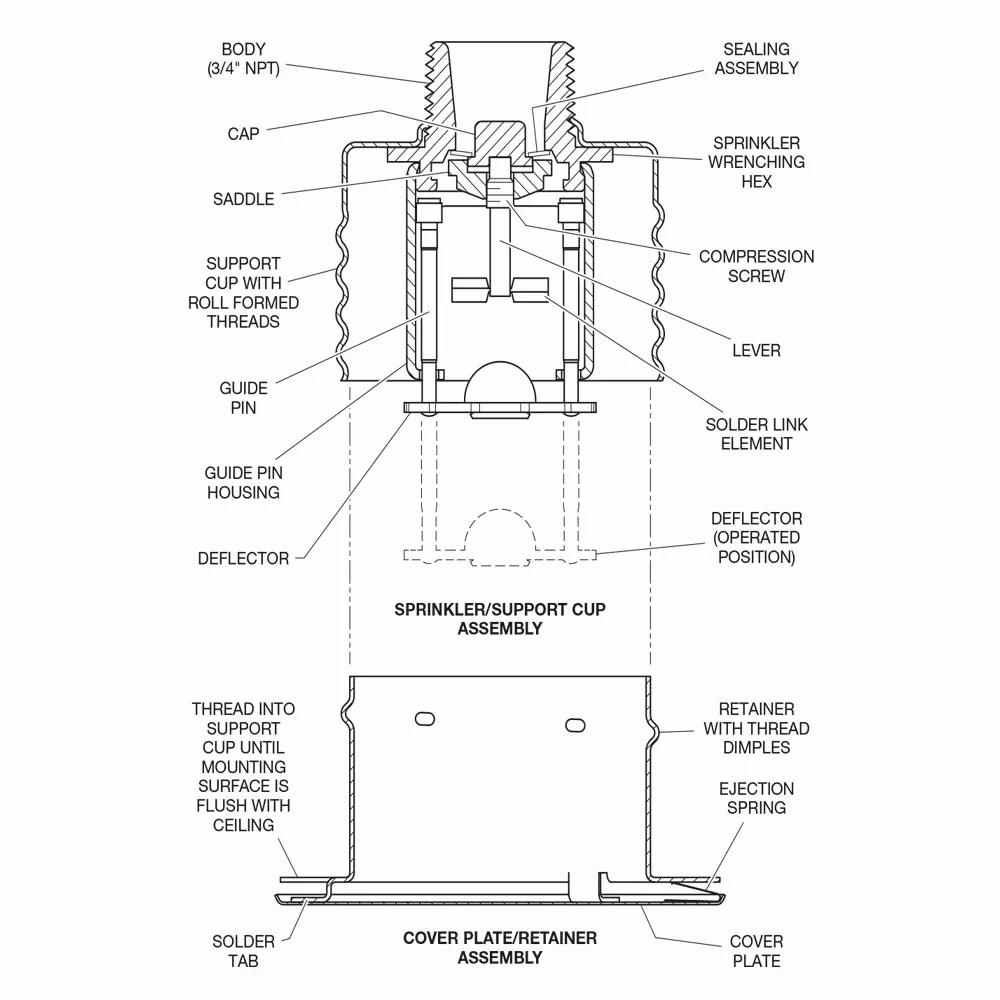

Leyon FM UL Model ELOC 11.2 K factor Extra Large Orifice Concealed Pendent Sprinklers are decorative, fast response, solder-type sprinklers designed for architecturally sensitive, light hazard areas like hotels, offices, churches, and restaurants. Featuring a flat concealed cover plate, they provide Quick and Standard Response with Extended Coverage up to 18 ft × 18 ft. The two-piece cover plate assembly allows system installation and pressure testing before ceiling finishes are applied. Ideal for projects requiring both fire protection performance and aesthetic ceiling design.

Category

描述

Model Model ELOC Pendent Sprinklers
Material Brass,Bronze
Type Upright, Pendent
K-factor, gpm/psi% (Lpm/bar%) 11.2 (161,3)-14.0(206,6)
Temperature Rating °F (°C)1 160°F (71°C)-212°F (100°C)
Thread Coefficient 3/4 in. NPT
Maximum Working Pressure, psi (bar) 175 psi (12,1 bar)

Send Inquiry
